The cost effective high-speed-machining center

1 Standard BT40-10,000 and BT50-6,000 rpm spindle can reach various machining requirement. 2 E economic floppy disk, CF card, network and high driver get the advantages of user-friendly interface. 3 Powerful 2000 blocks look ahead function can cut faster and more precision. 4 Get double output of the production under the same investment

X, Y axis linear guide and Z axis square way give the best configuration.

BT50 head unit can stand high torque drilling.		Now counter weight design makes free of the disturbance from the rapid up/down movement.		Box type base structure guarantees the best accuracy even under heavy load on the table.

Standard		Armless ATC		Laser calibration

Ball bar test		Heat exchanger

Optional		Arm type ATC		Coolant Through Spindle(CTS)

Spindle oil cooling system		Air Conditioner for Electrical Cabinet		Laser Tool pre-setter

Tool length pre-setter (Mechanical)		3D Tool pre-setter (Mechanical)		Five axis tables (100mm-500mm)

3D touch probe		Coolant particles filter (10um) for CTS

Spindles

Built-in BT40 15,000 rpm   Built-in BT30 24,000 rpm   Tining Belt Driver BT40

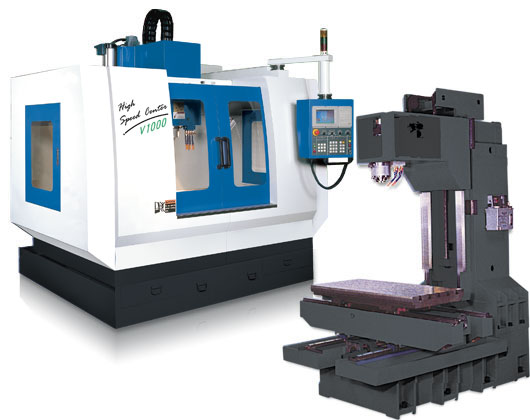

V1000 Specifications

( ) is the optional items

Table	Working surface	560 x 1280 mm
	T slot	18 mm x 100 mm x 5
	Loads Capacity	800 KGS
Travel	Stroke(X x Y x Z )	1020 x 620 x 510 mm (Z 610mm)
	Center to Column	700 mm
	Nose to Table	160 - 800 mm
Spindle	Spindle Nose	BT40 (BT50)
	Spindle Speed	12,000 RPM)
	Spindle Horse Power	10 KW
Transverse	Rapid X,Y axis	24 M/Min
	Rapid Z axis	16 M/Min
	Feed Rate	10 M/Min
	Servo Motor horse Power	2 KW

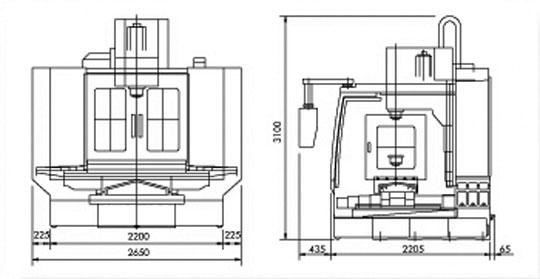

Machine	Dimension W x D x H	3350 x 2700 x 2900
	Weight	6200 KGS
	Power Source	25 KVA

★ Design and specifications are subject to change without prior notice.

Standard Accessories	Optional Accessories
1.Tools box 2.Automatic lubrication system 3.Operation manual 4.Full close cove	1.Rigid Tapping 2.Forth Axis rotary table 3.20/16 arm type ATC 4.Hard driver 5.Ethernet 6.high speed and high accuracy function
