1	The robust machine body integrates the HSM controller provide the best finish part.
2	Thanks to the HSM to make same day delivery possible for the sub-contract machining.
3	Built-in cooling system for the spindle unit to reduce the thermal defrom ation.
4	Teach-in functions get the operation user-friendly and save the programming time.

Full clse cover and telescope.		10.4" TFT LCD monitor.

Soindle oil cooling system.		Oil and coolant separate recover system.

Standard		Armless ATC		Laser calibration

Ball bar test		Heat exchanger

Optional		Arm type ATC		Coolant Through Spindle(CTS)

Spindle oil cooling system		Air Conditioner for Electrical Cabinet		Laser Tool pre-setter

Tool length pre-setter (Mechanical)		3D Tool pre-setter (Mechanical)		Five axis tables (100mm-500mm)

3D touch probe		Coolant particles filter (10um) for CTS

Spindles

Built-in BT40 15,000 rpm   Built-in BT30 24,000 rpm   Tining Belt Driver BT40

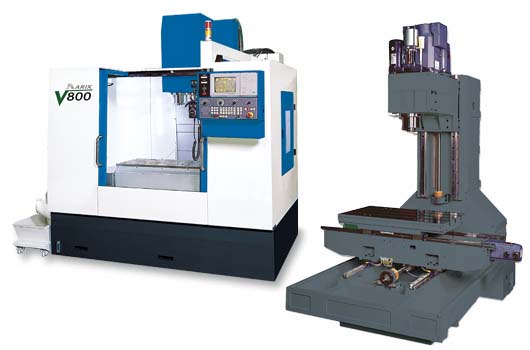

V800 Specifications

( ) is the optional items

Table	Working surface	500 x 910 mm
	T slot	18 mm x 125 mm x 3
	Maximum Table Loads	500 KGS
Travel	Stroke(X x Y x Z )	800 x 500 x 540 mm (Z 610mm)
	Center to Column	534 mm
	Nose to Table	150 - 690 mm
Spindle	Spindle Nose	BT40
	Spindle Speed	10,000 RPM)
	Spindle Horse Power	7.5 KW
Transverse	Rapid X,Y axis	15 M/Min
	Rapid Z axis	10 M/Min
	Feed Rate	10 M/Min
	Servo Motor horse Power	X, Y 1 KW; Z 2 KW
Machine	Dimension W x D x H	2100 x 2366 x 2477
	Weight	5000 KGS
	Power Source	20 KVA

★ Design and specifications are subject to change without prior notice.

Standard Accessories	Optional Accessories
1.Tools box 2.Automatic lubrication system 3.Operation manual 4.Full close cove	1.Rigid Tapping 2.Forth Axis rotary table 3.20/16 arm type ATC 4.Hard driver 5.Ethernet 6.high speed and high accuracy function
