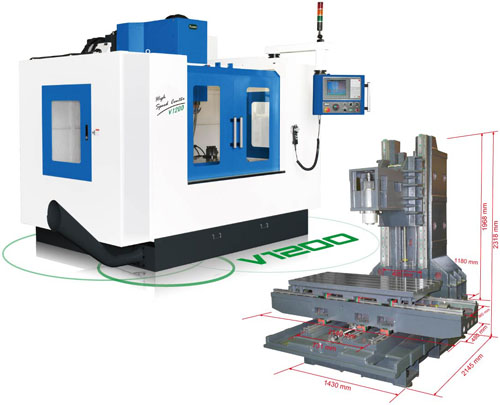

V1200 Compact Powerful Universal High Speed Centers
  • Machine & technology
  • Technology & Options
  • Specifications
  • Floor Plans

1 V1200 with three linear guides up to 45mm can bear the largest integrated five axis table up to 500mm.
2 V1200 is the optimal solution for five axis milling of aviation components, structure components and navigation components.


ERT500

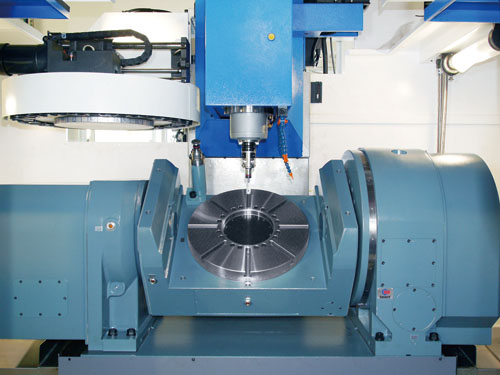

The integrated design takes out the table and can bear more weight than conventional add-on five axis table. There are less interference in the large part machining by this design.



There are three linear ways that can bear the heavy weight from the load or fice axis table but still keep good accuracy.

  The six blocks head unit can fit BT40 or BT50 spindles. The z axis keeps less deformation during forth and back motion through this design.

Standard
  Armless ATC   Laser calibration


Ball bar test   Heat exchanger


Optional   Arm type ATC   Coolant Through
Spindle(CTS)


Spindle oil cooling
system
  Air Conditioner
for Electrical Cabinet
  Laser Tool pre-setter


Tool length pre-setter
(Mechanical)
  3D Tool pre-setter
(Mechanical)
  Five axis tables
(100mm-500mm)


3D touch probe   Coolant particles filter (10um) for CTS


Spindles
Built-in BT40
15,000 rpm
  Built-in BT30
24,000 rpm
  Tining Belt Driver BT40

V1200 Specifications ( ) is the optional items
Travel X axis 1220 mm
Y axis 660 mm
Z axis 640 mm
Nose to Table 150 ~ 790 mm
Rapid X / Y / Z 24 / 24 / 20 M/min
Max Feed X / Y / Z 10 M/min
Table Working surface 1400 x 630 mm
T solt 18mm / 5 mm / 125 mm
Load capacity 1200 kg
ATC ATC type Armless
Tool number 24
Coolant System Pump power 1 /2 HP
Tank capacity 350 L
Spindle Max Speed 8,000 (12,000) RPM
Taper BT 40 (50)
Motor Power 15 / (20) HP
Cooling way (Oil cooler)
Center to columa front 720 mm
Tool Max. tool length 250 mm
Max. tool weigth 7 kg
Motor Motor of tool magazine 100 W
X, Y & Z servomotors 2 / 2 / 2 KW
Other
Air pressure 6~8 kgf/cm2
Power consumption(Max.) 25 KVA
Machine Packing ( L x W x H ) 330 x 230 x 260 (cm)
Net weight 7,200 KGS
  ★ Design and specifications are subject to change without prior notice.

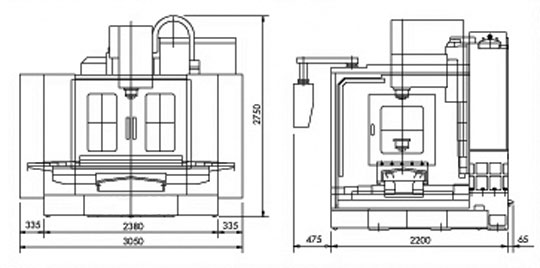

Standard Accessories Optional Accessories
1.Work lamp
2.Tools box
3.Coolant pump
4.Coolant system
5.Air blow
6.Heat exchanger
7.Alarm lamp
8.Full closeed guard
9.Automatic lubrication system
10.Operation manual
11.Armless ATC
1.Hard driver
2.USB Interface
3.Arm type ATC
4.4 / 5th Axis rotary table
5.Tool pre-setter
6.Oil-water separator
7.Oil mist coolant
8.CTS system
9.3D Touch probe
10.Chip conveyor
11.Remote MPG
