V700 Compact Powerful Universal High Speed Centers- Machine & technology
- Technology & Options
- Specifications
- Floor Plans
1 |

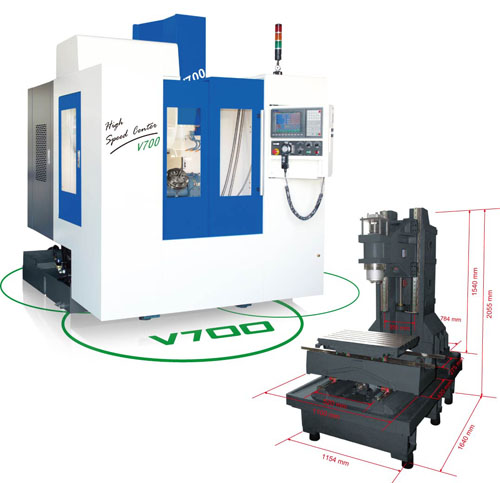

The similar concept from V450 that is heavier and bigger. |
| 2 |
V700 has the large Y stroke as 500 mm but occupies less space than traditional 800 models. |
| 3 |
This is mechanical parts milling oriented design structure takes heavy duty cut up to 15KW. |
 |

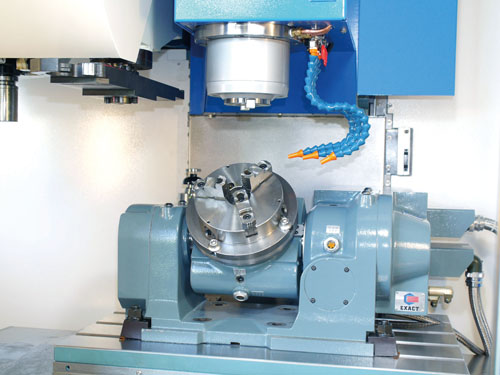

| The five axis table TRT170 covers medium ranges parts milling. The most mechanical parts can fit this and make the V700 versatile solution for complex profile machining. The spindle can integrate the su-spindle up to 50,000RPM to get super-finished surface. |
 |
 |
|
The robust body with linear guides up to 35mm takes heavy duty cut and generates smooth finish surfaces. |
The rigid base with rear slanted chips collecting tunnels gives the best accuracy to the whole machines. |
|
Armless ATC | Laser calibration | |||
 |
 |
| Ball bar test | Heat exchanger | |||
 |
 |
| Optional | Arm type ATC | Coolant Through Spindle(CTS) |
||
 |
 |
| Spindle oil cooling system |
Air Conditioner for Electrical Cabinet |
Laser Tool pre-setter | ||
 |
 |
 |
| Tool length pre-setter (Mechanical) |
3D Tool pre-setter (Mechanical) |
Five axis tables (100mm-500mm) |
||
 |
 |
 |

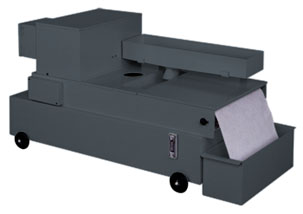

| 3D touch probe | Coolant particles filter (10um) for CTS | |
 |
 |
| Spindles | |||||
|
| V700 Specifications | ( ) is the optional items |
| Travel | X axis | 700 mm |
| Y axis | 500 mm | |
| Z axis | 450 mm | |
| Nose to Table | 160 ~ 800 mm | |
| Rapid | X / Y / Z | 24 / 24 / 20 M/min |
| Max Feed | X / Y / Z | 10 M/min |
| Table | Working surface | 700 x 500 mm |
| T solt | 14mm / 4 / 100 mm | |
| Load capacity | 600 kg | |
| ATC | ATC type | Armless |
| Tool number | 16 | |
| Coolant System | Pump power | 1 /2 HP |
| Tank capacity | 120 L | |
| Spindle | Max Speed | 10,000 RPM |

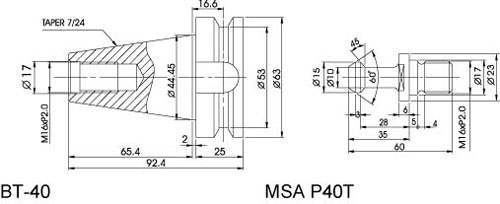

| Taper | BT 40 | |
| Motor Power | 10 / (15) HP | |
| Cooling way | Oil cooler | |
| Center to columa front | 510 mm | |
| Tool | Max. tool length | 250 mm |
| Max. tool weigth | 5 kg | |
| Motor | Motor of tool magazine | 100 W |
| X, Y & Z servomotors | 1 / 1 / 2 KW | |
| Other | ||
| Air pressure | 5~7 kgf/cm2 | |
| Power consumption(Max.) | 14 KVA | |
| Machine | Packing ( L x W x H ) | 205 x 243 x 250 (cm) |
| Net weight | 4,500 KGS |
| ★ Design and specifications are subject to change without prior notice. |
| Standard Accessories | Optional Accessories |
| 1.Work lamp 2.Tools box 3.Coolant pump 4.Coolant system 5.Air blow 6.Heat exchanger 7.Alarm lamp 8.Full closeed guard 9.Automatic lubrication system 10.Operation manual 11.Armless ATC |
1.Hard driver 2.USB Interface 3.Arm type ATC 4.4 / 5th Axis rotary table 5.Tool pre-setter 6.Oil-water separator 7.Oil mist coolant 8.CTS system 9.3D Touch probe 10.Chip conveyor 11.Remote MPG |
